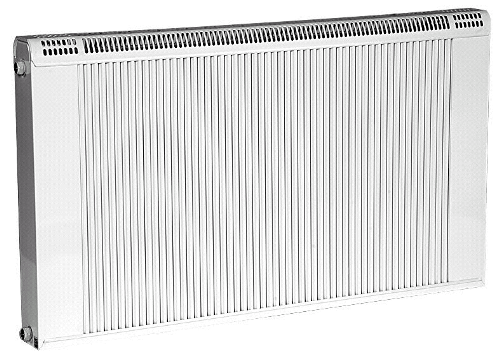

Radiator REGULUS RD8/60

REGULLUS is a wall-mounted heater with a characteristic oval upper casing. These are lightweight heaters, stainless steel and resistant to high pressures and large pressure fluctuations in the installation. They can work with boilers: electric, gas and oil.

Warranty: 25 years on tightness

The REGULLUS heater is constructed from two systems: a water system and a heat transfer system:

1. Water system – it is built from uniformly distributed horizontal copper heating tubes inside the heater, connected at the ends by vertical copper collecting manifolds. The connection of heating tubes with manifolds is made by soldering (hard solder).
2. Heat transfer system – it is built from aluminum sheet fins positioned vertically on the heating tubes of the water system. Appropriately bent front and rear edges of the fins fit tightly together creating the front and rear walls of the heater. All casing elements are made of aluminum.

The connection of copper with aluminum is a dry connection, therefore no electrochemical phenomenon occurs in it.

Detailed characteristics:

• Specific construction – water system made of copper, heat transfer system made of aluminum,
• High thermal conductivity coefficient – copper and aluminum,
• Mixed heat emission method: radiation + convection,
• Corrugated, very large heat exchange surface, this is an important feature when heating based on low temperature of the heating medium – condensing boilers, heat pumps,
• High efficiency at low supply temperatures – copper and aluminum have a high heat conduction coefficient (several times higher than steel and cast iron) – heat is emitted even with small temperature differences (between heater and surroundings),
• Low self-weight and small water capacity means high heating dynamics, heaters quickly reach full rated power for a given supply temperature – low thermal inertia,
• Low thermal inertia enables precise, energy-saving and easily controllable heating, it is effective operation in modern, controlled central heating systems,
• High resistance to variable and high pressure,
