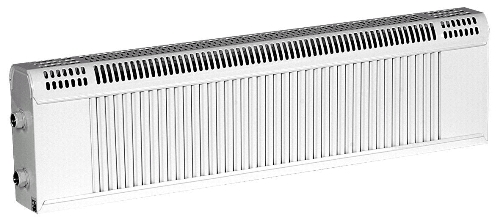

Radiator REGULUS R3/170

REGULLUS is a wall-mounted radiator with a characteristic oval upper casing. These are lightweight radiators, stainless steel and resistant to high pressures and large pressure fluctuations in the installation. They can work with electric, gas and oil boilers.

Warranty: 25 years on tightness

The REGULLUS radiator is constructed from two systems: a water system and a heat dissipation system:

1. Water system – built from horizontally arranged copper heating tubes evenly distributed inside the radiator and connected at the ends by vertical copper collector manifolds. The connection of heating tubes with collectors is made through brazing (hard solder).
2. Heat dissipation system – built from aluminum sheet fins mounted vertically on the heating tubes of the water system. Appropriately bent front and rear edges of the fins fit tightly together forming the front and rear walls of the radiator. All casing elements are made of aluminum.

The connection of copper with aluminum is a dry connection, therefore no electrochemical phenomenon occurs in it.

Detailed features:

• Specific design – water system made of copper, heat dissipation system made of aluminum,
• High thermal conductivity coefficient – copper and aluminum,
• Mixed heat emission method: radiation + convection,
• Corrugated, very large heat exchange surface, an important feature in heating based on low heating medium temperature – condensing boilers, heat pumps,
• High efficiency at low supply temperatures – copper and aluminum have a high heat conduction coefficient (several times higher than steel and cast iron) – heat is emitted even with a small temperature difference (radiator and surroundings),
• Low self-weight and small water capacity result in high heating dynamics, radiators quickly reach full rated power for a given supply temperature – low thermal inertia,
• Low thermal inertia enables precise, energy-saving and easily controllable heating, efficient operation in modern, controlled heating systems,
• High resistance to variable and high pressure,
