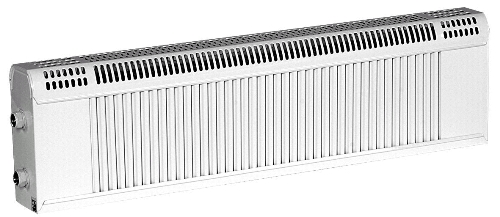

Radiator REGULUS R3/110

REGULLUS is a wall-mounted heater with a characteristic oval upper casing. These are lightweight heaters, stainless steel, and resistant to high pressure and large pressure fluctuations in the installation. They can work with boilers: electric, gas, and oil.

Warranty: 25 years on tightness

The REGULLUS heater is constructed from two systems: a water system and a heat distribution system:

1. Water system – built from uniformly distributed horizontal copper heating pipes inside the heater, connected at the ends by vertical copper collector headers. The connection of heating pipes with collectors is made by soldering (hard solder).
2. Heat distribution system – built from aluminum sheet fins installed vertically on the heating pipes of the water system. Appropriately bent front and rear edges of the fins fit tightly together forming the front and rear wall of the heater. All casing elements are made of aluminum.

The connection of copper with aluminum is a dry connection, therefore no electrochemical phenomenon occurs in it.

Detailed features:

• Specific construction – water system made of copper, heat distribution system made of aluminum,
• High thermal conductivity coefficient – copper and aluminum,
• Mixed heat emission method: radiation + convection,
• Corrugated, very large heat exchange surface, this is an important feature in heating based on low heating medium temperature – condensing boilers, heat pumps,
• High efficiency at low supply temperatures – copper and aluminum have high heat conduction coefficient (several times higher than steel and cast iron) – heat is emitted even with a small temperature difference (heater and surroundings),
• Low self-weight and small water capacity provide high heating dynamics, heaters quickly reach full rated power for a given supply temperature – low thermal inertia,
• Low thermal inertia allows precise, energy-efficient and easily controllable heating, it is efficient operation in modern, controlled heating systems,
• High resistance to variable and high pressure,
