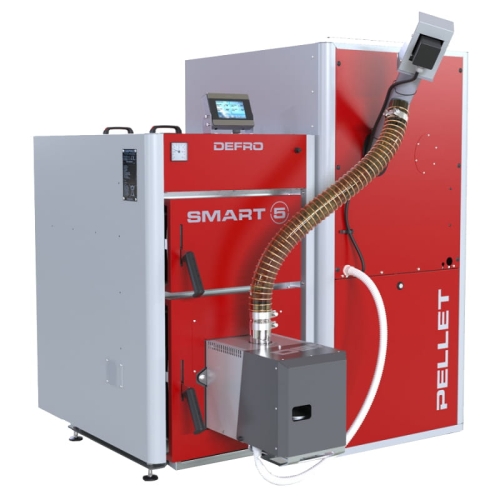

Boiler for pellets Defro SMART EKOPELL 20

Kocioł na pellety Defro SMART EKOPELL 20
  • discount
Availability: temporarily unavailable
Product code: 02705
Delivery: The price does not include any possible payment costs check the delivery methods
Price: €4,735.71

Regular price: €5,523.33

4735.71
The lowest price during 30 days prior to the reduction: €4,592.86

The promotion runs until 24 July 2026

quantity pcs

product unavailable

add to wish list
* - Field mandatory
Rating: 0
Vendor: DEFRO

Description

The automatic pellet boiler Defro Smart Ekopell features a reinforced construction and a built-in cooling coil enabling safe operation in a closed-loop system. The pellet burner is made of the highest quality materials, has an automatic cleaning function and two igniters as standard (Twin Spark System). The boiler is equipped with an innovative controller with a color touch display controlling 6 pumps. It also has a high efficiency of up to 90%. The boiler tank has a fuel reserve sensor; when the fuel level is minimal, the boiler operation is stopped, and after refueling, ignition occurs automatically.

Standard equipment:

  • APC 3 ADAPTIVE CONTROL controller,
  • ADAPTIVE CONTROL steering,
  • Internet module,
  • leveling feet,
  • igniter,
  • exhaust fan,
  • mechanical heat exchanger cleaning system,
  • boiler adapted for installation in a closed-loop system (option for an additional fee),
  • pellet burner with automatic cleaning function,
  • blower fan,
  • flue gas swirlers (economizers),
  • ash drawer,
  • chimney extension with damper,
  • fuel tank,
  • fuel supply system with burner,
  • BVTS thermostatic valve,
  • cooling coil.

Optional equipment (additional fee):

  • GSM module,
  • WIFI internet module,
  • DEFRO SPK Lux room regulator,
  • DEFRO MZ module,
  • SPK Lux wireless regulator,
  • wireless RS communication kit
  • DK LOGIC 100 regulator.

CONTROLLER - APC 3 ADAPTIVE CONTROL

APC 3 controller

FUNCTIONS PERFORMED BY THE CONTROLLER:

  • innovative ADAPTIVE Control steering using a turbine flow meter ensuring optimal selection of fan and feeder operating parameters;
  • boiler ignition and shutdown occurs automatically;
  • igniter control;
  • control of blower fan, exhaust fan and feeder;
  • control of CH, DHW, additional and two valve pumps;
  • control of additional device;
  • control of two mixing valves;
  • fuel level sensor and fuel consumption measurement – protects against complete depletion of the fuel supply system;
  • option to set daily boiler operation;
  • weekly control of boiler, DHW and valve temperatures;
  • weather control;
  • internet module (included) allows you to change boiler operating and service parameters (access to user and service menus, ability to remotely ignite and shut down the boiler);
  • cooperation with a room regulator with traditional (two-state) communication or equipped with RS communication – SPK LUX;
  • ability to connect DEFRO GSM module (control via mobile phone);
  • ability to connect two additional valve control modules (e.g.: DEFRO MZ) – enables operation of two additional valves.
Specification / boiler type Unit 12 16 20 24 28 38
Nominal power [kW] 12 16 20 24 28 38
Power range [kW] 3.6 - 12 4.8 - 16 6.0 - 20 7.2 - 24 8.4 - 28 11.4 - 38
Boiler class according to PN-EN 303-5 [-] 5
Ecodesign   YES YES YES YES YES YES
Heating surface [m2] 1.6 1.8 2.2 2.6 3.2 3.6
Heat transferred to surroundings [kW] 0.29 0.38 0.48 0.58 0.67 0.91
Area of heated rooms [m2] up to 120 up to 160 up to 200 up to 240 up to 280 up to 380
Primary fuel [-] granulate from sawdust - pellet Ø6 - 8mm
Fuel class [-] biogenic fuel - C1
Fuel tank capacity [kg] 195
Fuel consumption [kg/h] 2.7 3.6 4.5 5.4 6.3 8.5
Optimal thermal efficiency [%] 88.3-90.1
Max. permissible working pressure [bar] 2.5
Required draft [mbar] 0.20 0.22 0.24 0.26 0.28 0.29
Flue gas temperature
at nominal power
at minimum power
[°C]
[°C]
100 - 119
63 - 64
Mass flow of flue gas
at nominal power
at minimum power
[g/s]
[g/s]
8.0
3.8
10.4
4.6
12.9
5.3
15.3
6.1
17.7
6.9
23.8
8.8
Water temperature on supply min./max [°C] 65 / 80
Water temperature on return min. [°C] 55
Temperature control range [°C] 45 - 80
Temperature control range [kg] n.a.
Boiler water capacity [l] 51 57 64 73 86 98
Chimney dimensions [cm x cm]
[Ø mm]		 14 x 14
160		 14 x 14
160		 14 x 14
160		 15 x 15
170		 16 x 16
180		 18 x 18
200
Minimum chimney height [m] 6 6.5 7.0 7.5 8.0 9.0
Power supply [V/Hz] 230V/50Hz
Power consumption (operation/startup) [W] 112 / 412 112 / 412 112 / 412 112 / 412 187 / 487 187 / 487
Width [mm] 1182 1232

Technical data

Boiler class (303-5:2012) 5
Power output 20 kW
Exhaust gas pipe diameter 127 mm
Weight 424 kg
Efficiency 88.3 - 90.1 %
Size of heated surface 200 m²
Ecodesign +
Height 1348 mm
Width 1232 mm
Depth 1453 mm
Outlet and inlet size 6/4 G
Warranty 60 mies.
Power supply 230V / 50Hz
Min. incoming water temperature 55 °C
Min. chimney height 7 m
Required chimney draught 24 Pa
Silo volume 195 dm³
Max working pressure 2.5 bar
Max. water temperature 80 °C
Boiler heating surface 2.2 m²
Clean Air Program tak
