Boiler Defro Kompakt EkoPell F 75 kW

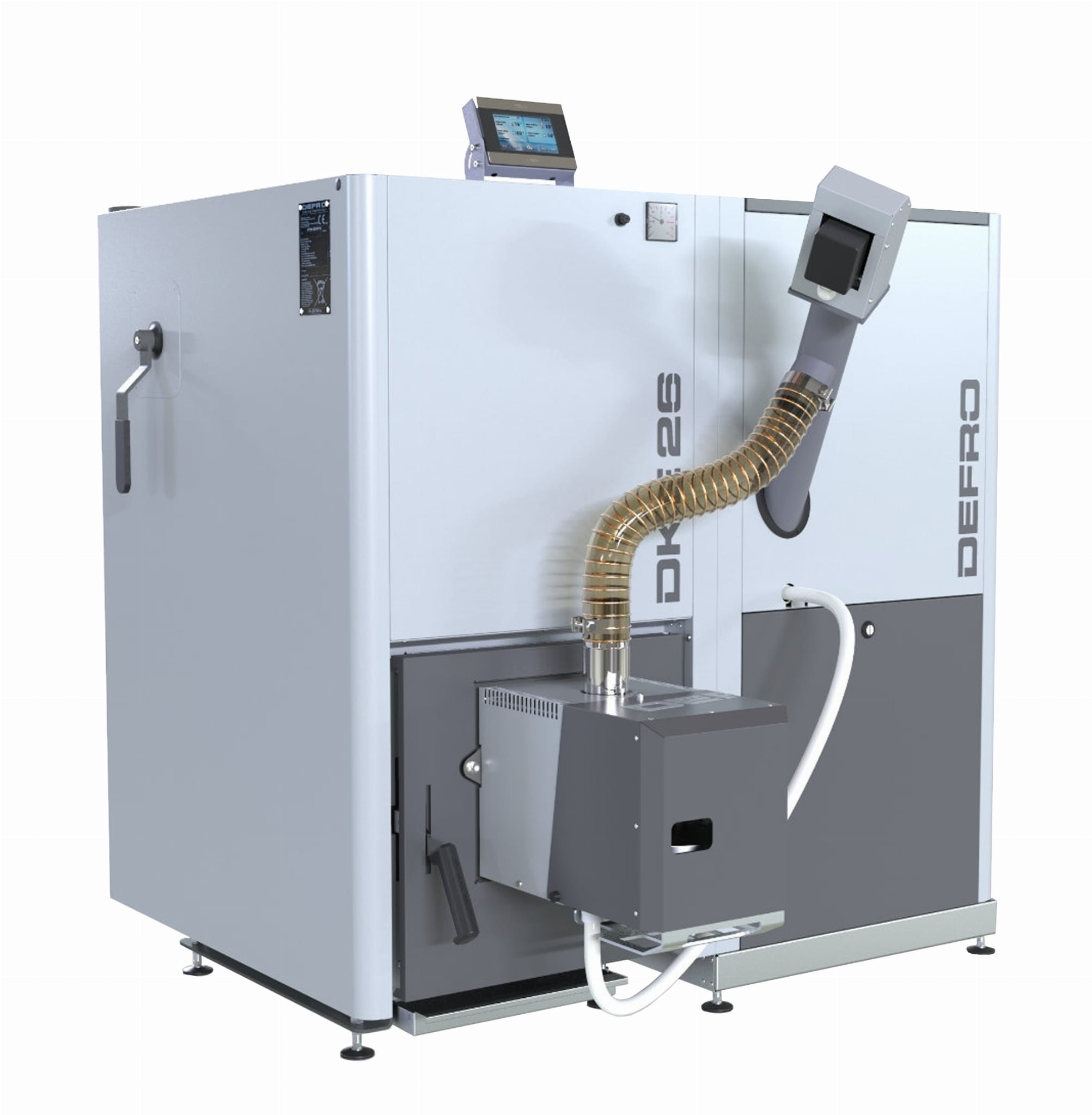

Defro Kompakt EkoPell Boiler is an automatic boiler that burns biomass in the form of pellets. The furnace is equipped with a controller that operates the heating pump, hot water pump, two additional pumps and allows control of the mixing valve and fuel ignition system, making boiler operation reduced to the minimum necessary.

The boiler is used in central heating and hot water installations, both gravity and pump systems. It is designed for heating single-family residential buildings and smaller public utility facilities. This furnace can also work with a hot water installation via a heat exchanger.

Fuel for the combustion process is automatically supplied from a fuel tank located next to the boiler using a feeder. In the burner located in the combustion chamber, all actions leading to the combustion of the supplied fuel with air supplied by a blower fan take place.

Standard Equipment:

• APC 3 ADAPTIVE CONTROL controller,
• ADAPTIVE CONTROL control,
• PID function,
• leveling feet,
• NZ version for closed system,
• igniter, exhaust fan,
• mechanical heat exchanger cleaning system,
• pellet burner with automatic cleaning function
• automatic cleaning and ash removal system

Optional Equipment:

• GSM module,
• I-1 module,
• I-1M module,
• WIFI internet module,
• ST-292 v3 room regulator,
• ST-292 v2 room regulator,
• DEFRO SPK Lux room regulator,
• SPK Lux wireless regulator,
• RS wireless communication kit,

Additional equipment elements should be reported when ordering the boiler due to the inability to install them later.

Basic boiler dimensions

Power / Dimension	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O
20kW	600	600	1200	1261	1181	1303	1205	Ø130	801	1384	1030	126	156	330	135
26kW	600	600	1200	1261	1181	1303	1205	Ø130	851	1470	1030	126	156	330	135
35kW	650	650	1300	1361	1281	1403	1363	Ø130	911	1569	1131	126	156	380	135
40kW	700	700	1400	1461	1501	-	1573	Ø130	961	1649	1351	126	156	430	135
56kW	750	750	1500	1561	1551	-	1552	Ø127	1001	1711	1401	126	156	480	135
75kW	750	600	1500	1561	1586	-	1552	Ø127	1292	1993	1421	126	156	480	135

Power / Dimension	P	R	S	T	U	W
20kW	147	801	139	228	1449	1198
26kW	147	851	139	228	1474	1198
35kW	147	911	152	267	1543	1198
40kW	159	961	149	267	1749	1410
56kW	128	999	139	238	1827	1542
75kW	128	1291	106	230	1983	1542

1. steel body with thermal insulation;
2. combustion chamber-ash pan door;
3. pellet burner;
4. adjustment feet;
5. supply fitting;
6. return fitting;
7. drain fitting;
8. return temperature sensor;
9. exhaust fan;
10. flue gas outlet fitting (chimney);
11. flue sensor mounting fitting;
12. boiler controller display;
13. STB temperature limiter;
14. analog thermometer;
15. main switch;
16. fuel feeder drive;
17. spiral pipe;
18. fuel tank cover;
19. fuel tank;
20. inspection shield;
21. upper cleaning access cover;
22. upper cleaning access lid;
23. inspection window;
24. sensor socket cover plate;
25. sensor socket;
26. exhaust fan connection;
27. control module;
28. fuel level sensor;
29. heat exchanger cleaning mechanism lever;
30. external ash drawer;





Technical Data:

Boiler Name	Defro Kompakt EkoPell
Specification/boiler type	Unit	20	26	35	40	56	75
Nominal power	kW	20	26	35	40	56	75
Power range	kW	5.3-18.9	7.5-24.8	10.1-34.1	12.0-39.7	16.5-56.9	20.3-79.1
