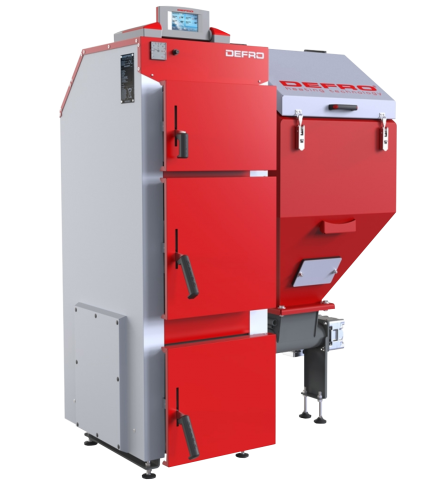

Automatic boiler Defro Komfort Eko LUX 40 kW with feeder on left side

The boiler KOMFORT EKO LUX is a boiler from the Komfort Eko series, intended for installation in an open heating system, it can be installed in a closed heating system, with working pressure not exceeding 2.5 bar provided that thermal protection is applied, e.g. DBV-2 cooling valve. Installation protection should meet the requirements of standards PN-EN-12828 and PN-EN 303-5.

The boiler KOMFORT EKO LUX has been equipped with an advanced K1Pv4 controller with a color touch panel (additionally controls heating system components). There is a possibility of purchasing a GSM or INTERNET module, thanks to which we can monitor the boiler outside the home.

The boiler also has an innovative solution, which is the ABM system, an energy-saving motor reducer (power consumption 30W) with high efficiency and auto-reverse in case of fuel feeder blockage.

The combustion chamber is equipped with automatic retort burner. In the flue gas ducts there are economizers (swirlers), designed to increase boiler efficiency and reduce flue gas emissions. Fuel for the combustion process is automatically transported from the fuel tank located nearby by means of a screw feeder.

Flue gases are discharged to the chimney through flue pipe located in the rear or upper wall of the boiler (CG version). For loading purposes and for periodic cleaning and maintenance, the boiler is equipped with closed and sealed combustion chamber and ash pan doors. Additionally, cleaning doors are placed in the front of the boiler - depending on boiler power, single or double.

The fuel tank is equipped with a filling opening with a sealed closing mechanism. It has a flap opening sensor, which protects against leaving the fuel tank cover open. To reduce heat losses, the external surface of the boiler is insulated from the surroundings by means of external steel sheet casing, under which thermal insulation made of asbestos-free mineral wool is placed.

Standard equipment:

• electronic regulator K1Pv4,
• ADAPTIVE CONTROL control,
• PID function,
• NZ version for closed system,
• blower fan (self-installation),
• boiler leveling feet (self-installation),
• fuel supply system with burner,
• fuel tank,
• analog thermometer,
• ash drawer,
• flue gas swirlers,
• ceramic deflector,
• ceramic lining of the combustion chamber.

Additional boiler equipment (for additional fee):

• STRAŻAK I extinguishing system,
• STRAŻAK II extinguishing system,
• SPK LUX room regulator,
• Additional mixing valve controller,
• GSM module,
• WIFI internet module,
• DBV-2 cooling valve,
• SPK Lux wireless regulator,
• wireless RS communication kit.

Functions implemented by the K1Pv4 controller:

• innovative ADAPTIVE CONTROL control using a turbine flow meter ensuring optimal selection of fan and feeder operating parameters
• history of the last twenty boiler alarm states
• possibility to export temperature history to external USB memory
• possibility of cooperation with the exhaust fan module
• control of fan and screw feeder
• control of mixing valve actuator as standard
• weekly control
• heating and DHW pump control
• control of two additional pumps
• possibility of connecting a room regulator with RS communication or traditional e.g. SPK LUX
• possibility of connecting DEFRO GSM module
• possibility of connecting a new version of DEFRO Internet module enabling remote change of boiler operating parameters (access to user and service menu) via www.emodul.pl
• possibility of controlling two additional valves using DEFRO MZ modules
• motor reducer operation with reverse operation (not applicable to PZ version)
• large color graphic display
• touch panel
• adjustable screen tilt in the range of 45° to 105°
• temperature sensor for heating, DHW, valve, return, additional, flue gases and external temperature
• temperature protection (thermostat)
• screw feeder temperature sensor (protection)

The boiler heat exchanger was made of certified boiler steel with a thickness of 6 mm.

Energy-saving motor reducer with high efficiency and auto-reverse in case of fuel feeder blockage.

Combustion chamber with highly efficient retort burner.

Fuel feeder screw made entirely from one element.

System balancing pressure in the fuel tank.

The manufacturer provides a 5-year warranty on heat exchanger tightness and 2-year warranty for proper operation of the boiler and other components.

Vertical or horizontal configuration of the flue pipe after installation of the adjustable elbow (adjustable elbow is not part of boiler equipment);

Boiler adapted as standard for installation in a closed system provided that installation is in accordance with the boiler DTR.

Ceramic catalysts stabilizing the combustion process.

Change the direction of door opening (does not apply to internal glowing doors).

Fuel tank cover opening sensor.

ADAPTIVE CONTROL - boiler operation adjustment based on air flow through the heat exchanger.

K1P v4 controller with color touch panel controlling 4 pumps (heating, DHW, circulation, floor heating). Mixing valve control. Possibility to control via GSM or INTERNET- option for additional fee, adjustable angle of the control panel position.

High thermal efficiency reaching 90% thanks to increased heat recovery from flue gases.

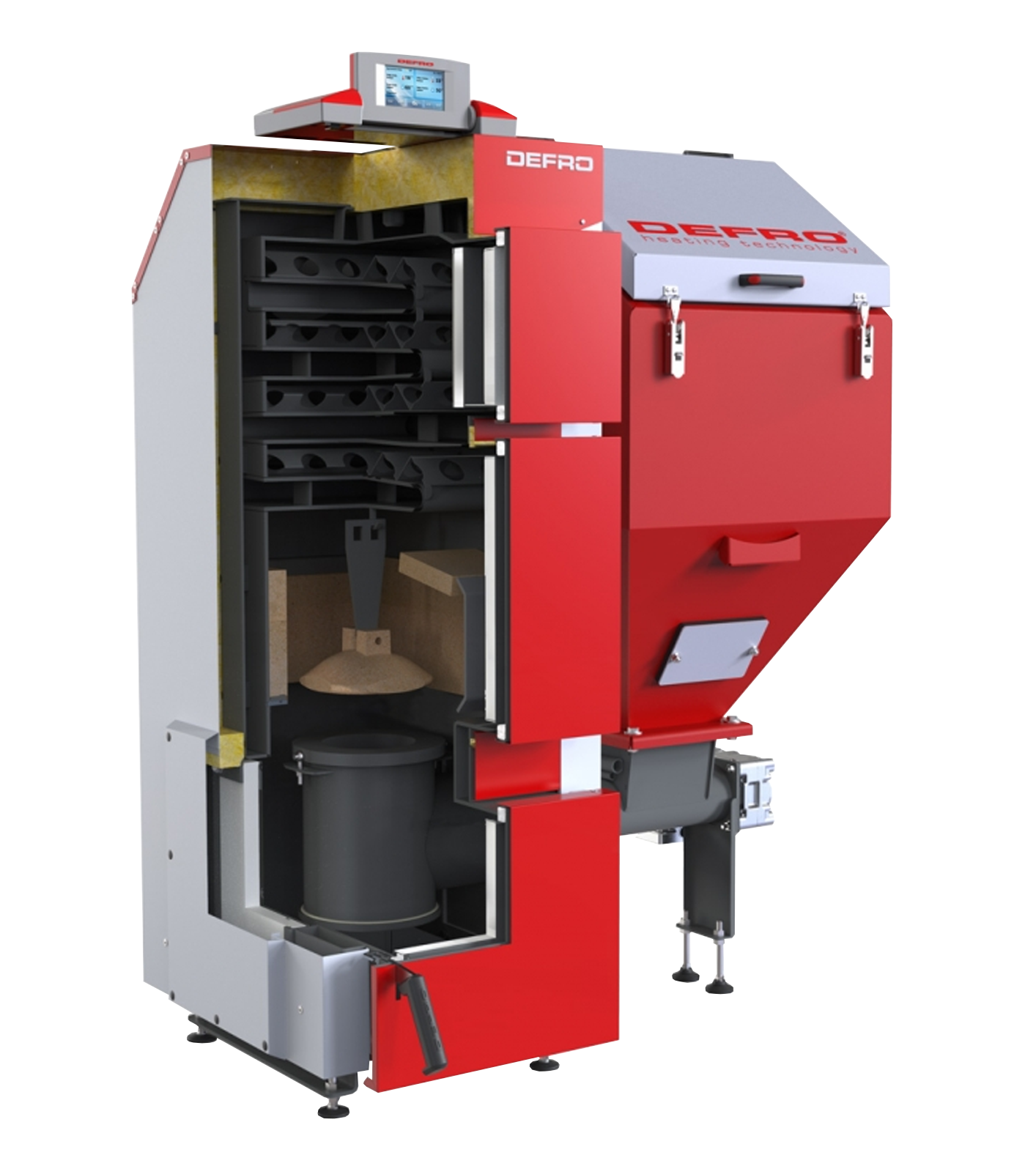

Basic components of DEFRO Komfort Eko LUX boiler



1. steel casing with thermal insulation;
2. cleaning doors;
3. combustion chamber doors;
4. ash pan doors;
5. supply port;
6. return port;
7. drain port;
8. flue pipe;
9. flue pipe cleaning access (only in case of flue outlet in the rear wall);
10. electronic regulator;
11. analog thermometer;
12. fan;
13. fuel feeder;
14. motor reducer;
15. fuel tank;
16. fuel tank carrying handle;
17. fuel tank inspection opening;
18. fuel feeder inspection opening;
19. mounting sleeve for feeder temperature sensor for STRAŻAK I system¹⁾;
20. mounting port for BVTS valve of STRAŻAK I system¹⁾;
21. mounting port for BVTS valve of STRAŻAK II system¹⁾;
22. terminal strip for controller wires;
23. cover for controller sensor mounting sleeves;
24. wire passage;
25. fuel tank air supply port;
26. mounting sleeve for flue gas sensor;
27. STB temperature limiter;
28. boiler leveling feet;
29. main switch;
30. mounting sleeve for return water temperature sensor.

¹⁾ STRAŻAK I and STRAŻAK II systems are not part of boiler equipment, optional equipment for additional fee.



Boiler Name

Komfort Eko LUX

Specification/boiler type

Unit

12

15

20

25

30

40

Power range

kW

3.6 - 12

4.5 - 15

6.0 - 20

7.5 - 25

9.0 - 30

12.0 - 40

Technical data Boiler class (303-5:2012) 5 Power output 40 kW Exhaust gas pipe diameter 178 mm Weight 681 kg Efficiency 90.6 % Ecodesign + Outlet and inlet size 1 1/2 G Warranty 60 mies. Min. chimney height 8 m Required chimney draught 32 Pa Silo volume 258 dm³ Max working pressure 1.5 bar thickness of steel 6 mm Min. chimney diameter 220 mm Clean Air Program + Shipping costs The price does not include any possible payment costs Shipping country: Related products Room regulator DEFRO SPK LUX - by wire Room regulator DEFRO SPK LUX - by wire Price: 1 040,00 zł Add to cart Room regulator DEFRO SPK LUX - Wireless RS communication Room regulator DEFRO SPK LUX - Wireless RS communication Price: 1 420,00 zł Add to cart Moduł internetowy DEFRO Moduł internetowy DEFRO Price: 1 010,00 zł Add to cart Product reviews (0) All reviews (positive and negative) are displayed. We don't verify that they come from customers who have purchased the product. Contact: +48 32 415 31 65 lub +48 695 11 88 05 Email: kotly@kotly.com.pl PROSAT Fojcik Sp. J. ul. Rudzka 107, 47-400 Racibórz kotly@kotly.com.pl +48 32 419 01 20 +48 32 415 31 65 Copyright © 2025 Kotly.com.pl All rights reserved. up Shop is in view mode View full version of the site Sklep internetowy Shoper Premium
