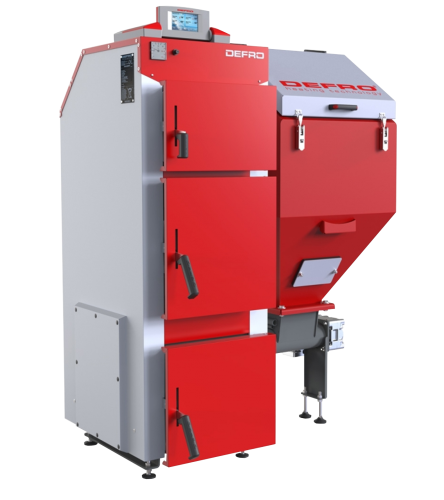

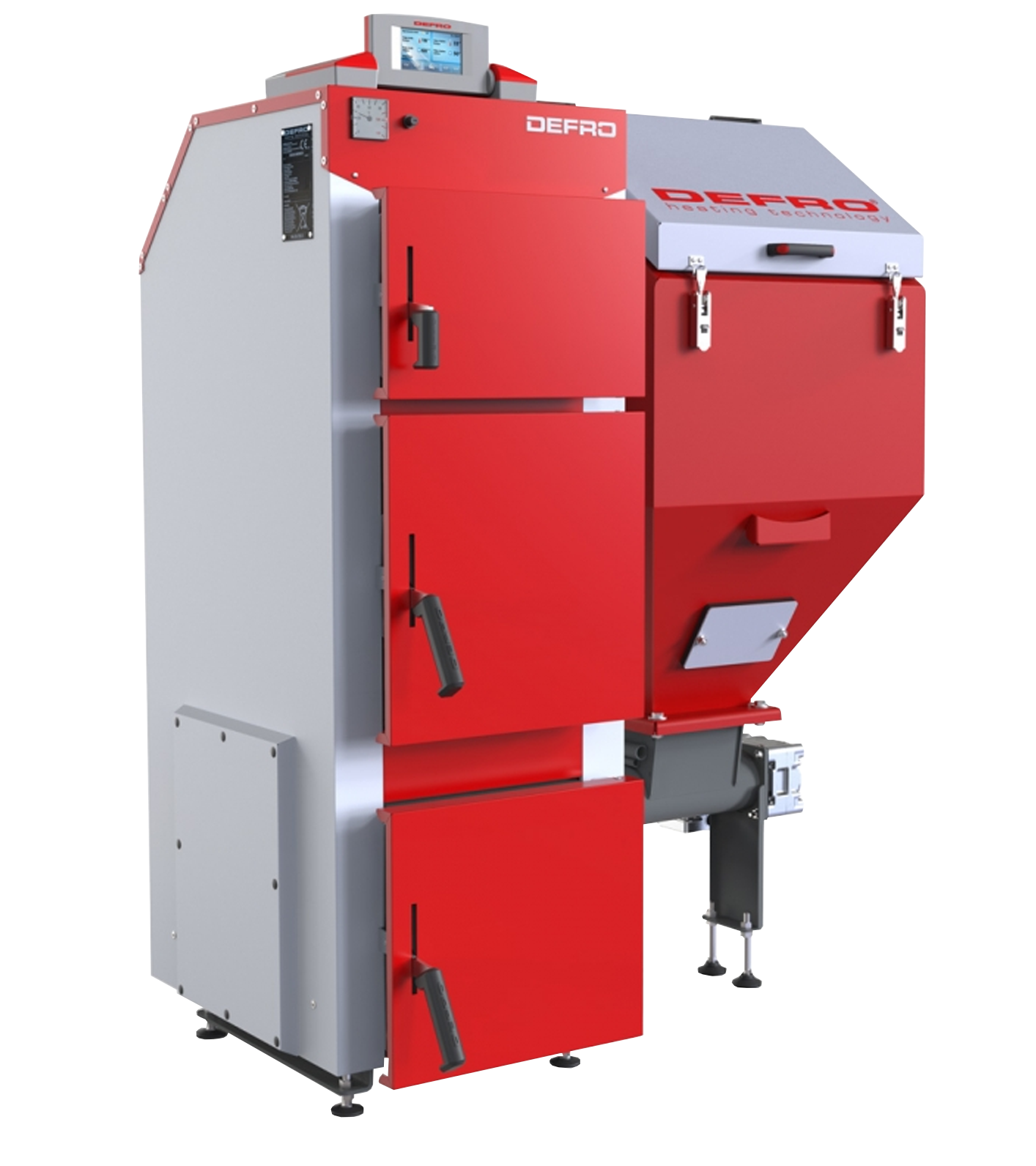

Automatic boiler Defro Komfort Eko LUX 20 kW with feeder on left side

The boiler KOMFORT EKO LUX is a boiler from the Komfort Eko series, intended for installation in an open heating system, it can be installed in a closed heating system, with working pressure not exceeding 2.5 bar provided that thermal protection is applied, e.g. DBV-2 cooling valve. Installation safety devices should meet the requirements of PN-EN-12828 and PN-EN 303-5 standards.

The boiler KOMFORT EKO LUX has been equipped with an advanced K1Pv4 controller with a color touch panel (additionally supports heating system components). There is an option to purchase a GSM or INTERNET module, which allows us to monitor the boiler outside the home.

The furnace also features an innovative solution in the form of the ABM system, an energy-efficient motor-reducer (power consumption 30W) with high efficiency and auto-reverse in case of fuel feeder blockage.

The combustion chamber is equipped with automatic retort burner. In the flue gas passages, economizers (flue gas swirlers) are placed to increase boiler efficiency and reduce the level of flue gas emissions. Fuel for the combustion process is automatically transported from the fuel tank located nearby by means of a screw feeder.

Flue gases are discharged to the chimney through a flue located in the rear or top wall of the boiler (CG version). For loading purposes and cleaning and periodic maintenance, the boiler is equipped with sealed and closed furnace-ash drawer doors. In addition, cleaning doors are placed in the front of the boiler - depending on the boiler's power, single or double.

The fuel tank is equipped with a filler port with a sealed closing mechanism. It has a flap opening sensor, which protects against leaving the fuel tank cover open. To reduce heat loss, the external surface of the boiler is insulated from the surroundings using external steel sheet casing, under which thermal insulation made of asbestos-free mineral wool is placed.

Standard Equipment:

• K1Pv4 electronic controller,
• ADAPTIVE CONTROL control,
• PID function,
• NZ version for closed system,
• blower fan (self-installation),
• leveling feet for the boiler (self-installation),
• fuel supply system with burner,
• fuel tank,
• analog thermometer,
• ash drawer,
• flue gas swirlers,
• ceramic deflector,
• ceramic lining of the combustion chamber.

Additional boiler equipment (for an additional fee):

• STRAŻAK I extinguishing system,
• STRAŻAK II extinguishing system,
• SPK LUX room controller,
• Additional mixing valve controller,
• GSM module,
• WIFI internet module,
• DBV-2 cooling valve,
• SPK Lux wireless controller,
• set for wireless RS communication.

Functions implemented by the K1Pv4 controller:

• innovative ADAPTIVE CONTROL with the use of a turbine flow meter ensuring optimal selection of fan and feeder operating parameters
• history of the last twenty alarm states of the boiler
• ability to export temperature history to external USB memory
• ability to cooperate with the exhaust fan module
• control of fan and screw feeder
• control of mixing valve actuator as standard
• weekly control
• control of heating and hot water pump
• control of two additional pumps
• ability to connect a room controller with RS communication or traditional e.g. SPK LUX
• ability to connect DEFRO GSM module
• ability to connect the new version of DEFRO Internet module enabling remote change of boiler operating parameters (access to user and service menu) via www.emodul.pl
• ability to control two additional valves using DEFRO MZ modules
• motor-reducer operation with reversible operation (does not apply to PZ version)
• large color graphic display
• touch panel
• adjustable display tilt angle in the range from 45° to 105°
• temperature sensor for heating, hot water, valve, return, additional, flue gas and external temperature
• temperature protection (thermal)
• feeder screw temperature sensor (safety)

The boiler's heat exchanger was made from certified boiler steel with a thickness of 6 mm.

Energy-efficient motor-reducer with high efficiency and auto-reverse in case of fuel feeder blockage.

Combustion chamber with highly effective retort burner.

Fuel feeder screw made entirely from one element.

Pressure equalization system in the fuel tank.

The manufacturer provides a 5-year warranty for heat exchanger tightness and a 2-year warranty for proper boiler operation and other components.

Vertical or horizontal flue configuration after installing a rotary elbow (rotary elbow is not included in the boiler equipment);

The boiler is standard adapted for installation in a closed system provided installation is in accordance with the boiler DTR.

Ceramic catalysts stabilizing the combustion process.

Change of door opening direction (does not apply to internal glowing doors).

Tank cover opening sensor.

ADAPTIVE CONTROL - boiler operation regulation based on air flow through the heat exchanger.

K1P v4 controller with color touch panel controlling 4 pumps (heating, hot water, circulation, floor). Mixing valve control. Possibility of control via GSM or INTERNET - paid option, adjustable angle of control panel position.

High thermal efficiency reaching 90% thanks to increased heat recovery from flue gases.

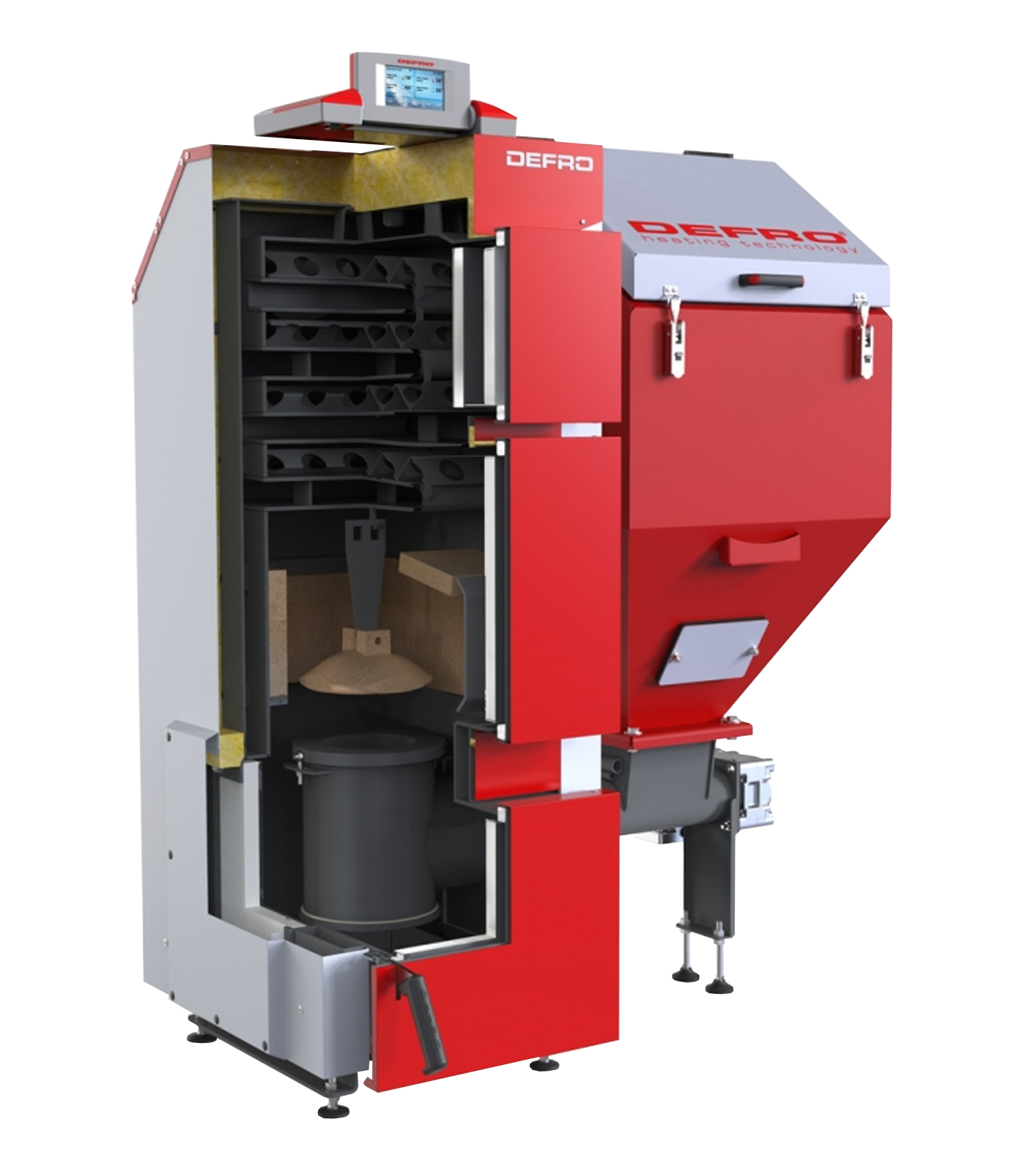

Basic component parts of the DEFRO Komfort Eko LUX boiler



1. steel casing with thermal insulation;
2. cleaning doors;
3. furnace doors;
4. ash drawer doors;
5. supply nozzle;
6. return nozzle;
7. drain nozzle;
8. flue;
9. flue cleaning port (only if flue exit is in the rear wall);
10. electronic controller;
11. analog thermometer;
12. fan;
13. fuel feeder;
14. motor-reducer;
15. fuel tank;
16. handle for carrying fuel tank;
17. fuel tank inspection port;
18. fuel feeder inspection port;
19. temperature sensor mounting sleeve for STRAŻAK I system¹⁾;
20. BVTS valve mounting nozzle for STRAŻAK I system¹⁾;
21. BVTS valve mounting nozzle for STRAŻAK II system¹⁾;
22. controller wire connection bar;
23. sensor mounting sleeve cover;
24. wire pass-through;
25. fuel tank pressurization pipe connection;
26. flue gas sensor mounting sleeve;
27. temperature limiter STB;
28. boiler leveling feet;
29. main switch;
30. return water temperature sensor mounting sleeve.

¹⁾ STRAŻAK I and STRAŻAK II systems are not included in the boiler equipment, optional paid equipment.



Boiler Name		Komfort Eko LUX
Specification/boiler type		Unit	12	15	20	25	30	40
Power range		kW	3.6 - 12	4.5 - 15	6.0 - 20	7.5 - 25	9.0 - 30	12.0 - 40
Technical data Boiler class (303-5:2012) 5 Power output 20 kW Exhaust gas pipe diameter 159 mm Weight 472 kg Efficiency 90.5 % Ecodesign + Outlet and inlet size 1 1/2 G Warranty 60 mies. Min. chimney height 6.5 m Silo volume 191 dm³ Max working pressure 1.5 bar thickness of steel 6 mm Min. chimney diameter 180 mm Clean Air Program + Shipping costs The price does not include any possible payment costs Shipping country: Related products Two-way thermal release valve Regulus DBV2 - bifunctional Two-way thermal release valve Regulus DBV2 - bifunctional Price: 2 236,36 Kč Add to cart Product reviews (0) All reviews (positive and negative) are displayed. We don't verify that they come from customers who have purchased the product. Contact: +48 32 415 31 65 lub +48 695 11 88 05 Email: kotly@kotly.com.pl PROSAT Fojcik Sp. J. ul. Rudzka 107, 47-400 Racibórz kotly@kotly.com.pl +48 32 419 01 20 +48 32 415 31 65 Copyright © 2025  Kotly.com.pl All rights reserved. up Shop is in view mode View full version of the site Sklep internetowy Shoper Premium
