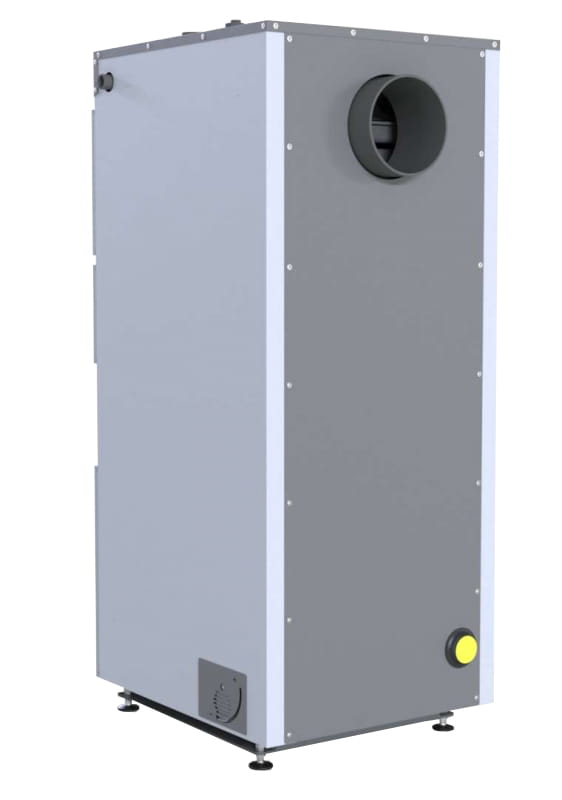

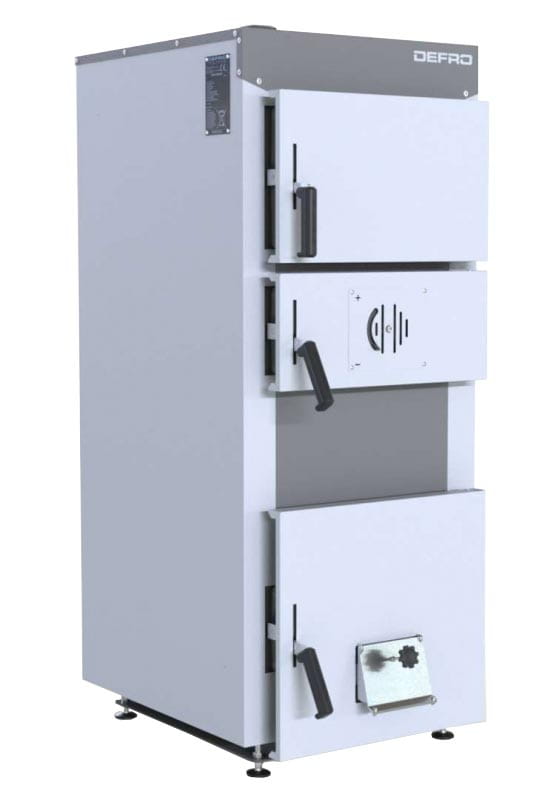

Manual fired boiler for coal DEFRO Optima Komfort Eko 45

Kocioł zasypowy na węgiel DEFRO Optima Komfort Eko 45

discount

Availability: temporarily unavailable

Delivery: The price does not include any possible payment costs check the delivery methods

Price: CHF2,829.55

Regular price: ~~CHF3,424.55~~

2829.55

The lowest price during 30 days prior to the reduction: CHF2,829.55

* Fire draft regulator:

quantity pcs

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor:

Description

Boiler DEFRO Optima Komfort Eko is a hopper-fed boiler for hard coal. It has a body made of certified boiler steel sheet. Cooperation with an accumulation tank is required.

Primary air is supplied gravitationally from outside using a tilting damper located in the firebox-ash pan doors, controlled by means of a draft gauge.

The boiler is adapted for installation in a closed-loop system provided that safety devices are installed in accordance with the boiler's DTR and has the ability to regulate secondary air inflow.

Boilers meet the energy-emission requirements of class 5 and have an Ecodesign Certificate.

The manufacturer recommends installing the boiler in combination with an accumulation tank and raising the temperature of the water returning to the boiler: in the form of a mixing valve or Laddostat. The minimum return temperature should be 55°C.

Advantages:

High thermal efficiency in the range of 90.0 to 90.9% thanks to increased heat recovery from flue gases;
Boiler adapted as standard for installation in a closed-loop system provided that safety devices are installed in accordance with the boiler's DTR;
Heat exchanger made of certified high-grade steel;
Change of door opening direction (applies to upper and middle doors);
Regulation of secondary air inflow;
Large hopper chamber;
Adapted for thermostat draft gauge installation;
Mechanical regulation of the combustion process using a knob in the ash pan doors;
Boiler adapted for installation in a closed-loop system provided that safety devices are installed in accordance with the boiler's DTR;
3 years warranty on heat exchanger tightness, 2 years on other components and proper boiler operation - provided installation is in accordance with the boiler's DTR;

Description/boiler type	Unit	Optima Komfort Eko 22	Optima Komfort Eko 24	Optima Komfort Eko 28	Optima Komfort Eko 35	Optima Komfort Eko 45
Fuel	[-]	hard coal - nut with granulation 20-50mm
Hopper chamber capacity	[kg]	31	33	35	35	45
Efficiency at nominal power	[%]	89.9	90.4	90.7	90.0	89.7
Energy efficiency class	[-]	B
Max. allowable working pressure	[bar]	1.5
Required flue gas draft	[mbar]	0.24	0.30	0.30	0.32	0.31
Max. water temperature at supply	[°C]	65/90
Boiler weight	[kg]	355	395	430	465	515
Boiler water capacity	[l]	81	96	107	119	132
Supply and return diameter	[in]	G 1½”
Diameter of flue outlet stub	[mm]	Ø 178		Ø 194		Ø 245
Min. safe accumulation tank capacity	[l]	1200	1300	1500	1800	2600

Dimensions:

Technical data

Boiler class (303-5:2012)	5
Power output	45 kW
Exhaust gas pipe diameter	245 mm
Weight	515 kg
Efficiency	89.7 %
Ecodesign	+
Height	1642 mm
Width	632 mm
Depth	943 mm
Outlet and inlet size	1 ½ G
Producer's recommended minimum volume of accumulation tanks	2600 L
