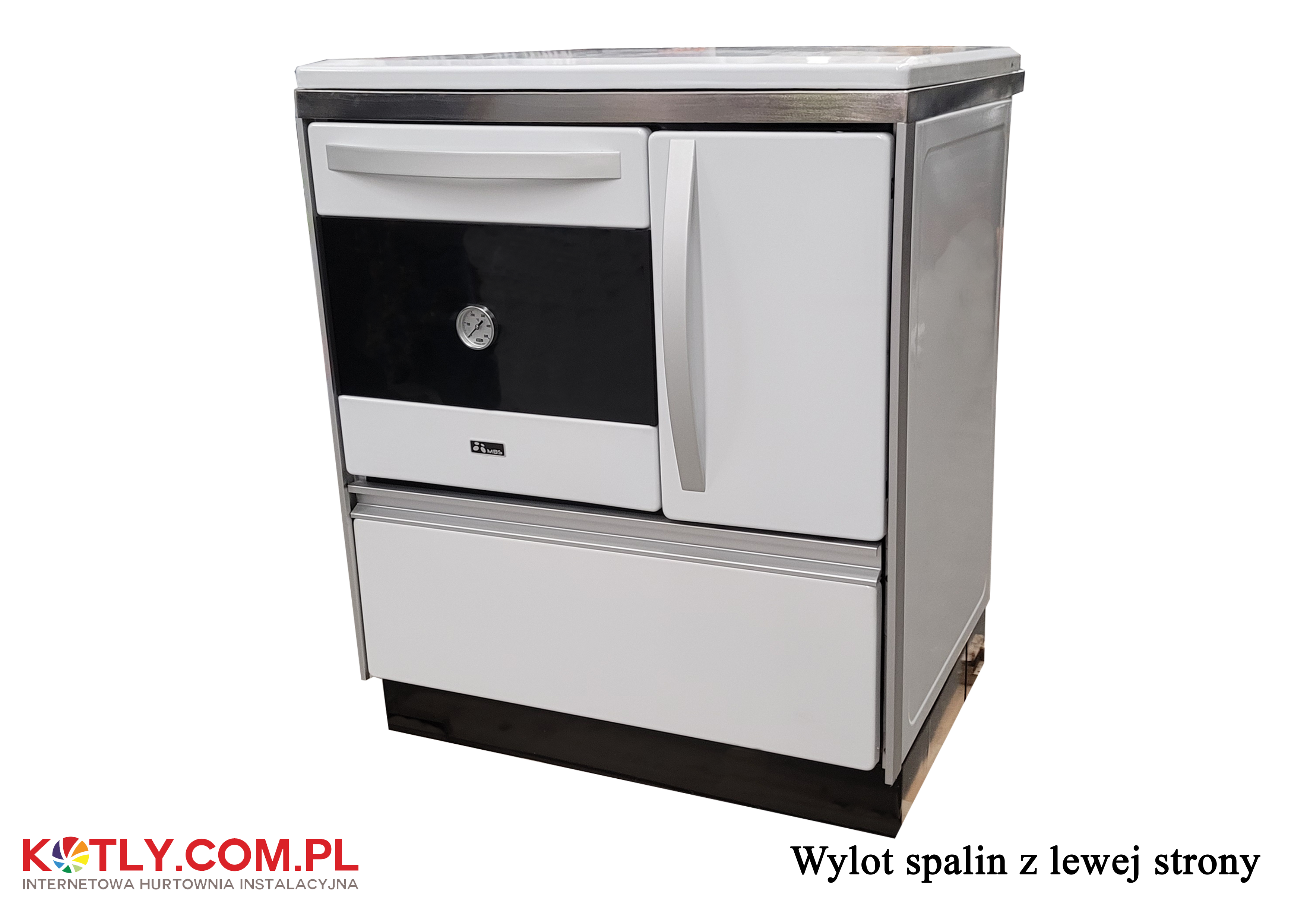

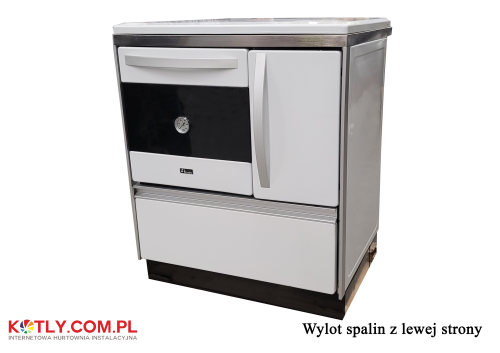

Kitchen SD Thermo Royal 720 with water circuit with exhaust flue on left side
Regular price:
product unavailable
add to wish list
0
Description

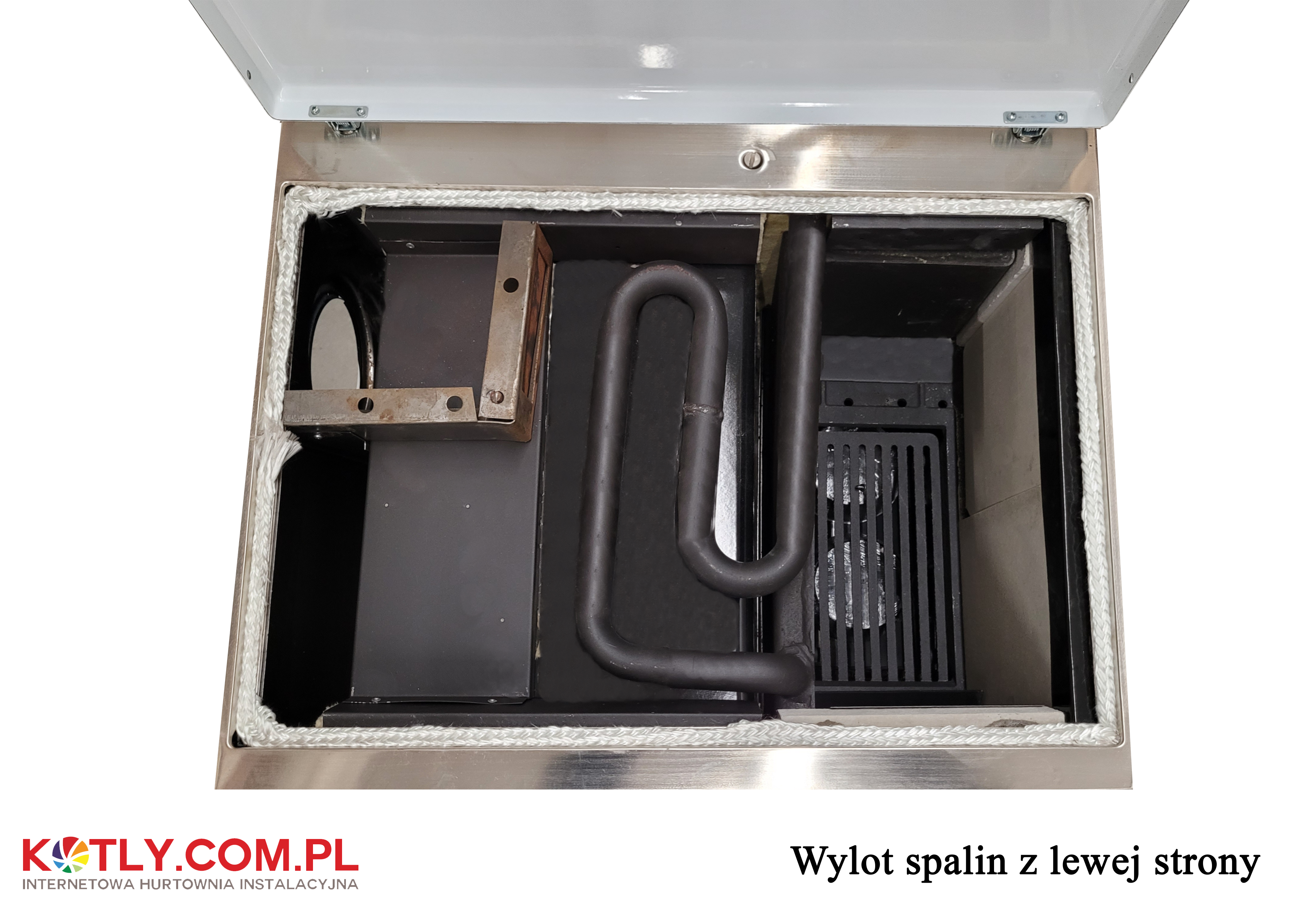

The MBS Thermo Royal 720 kitchen, thanks to the installed coil, can be used to heat radiators or a boiler.
- multifunctionality, proven construction and simplicity
- ash drawer makes it easy to remove residue from the combustion process
- fuel drawer allows storage of coal briquettes or wood.

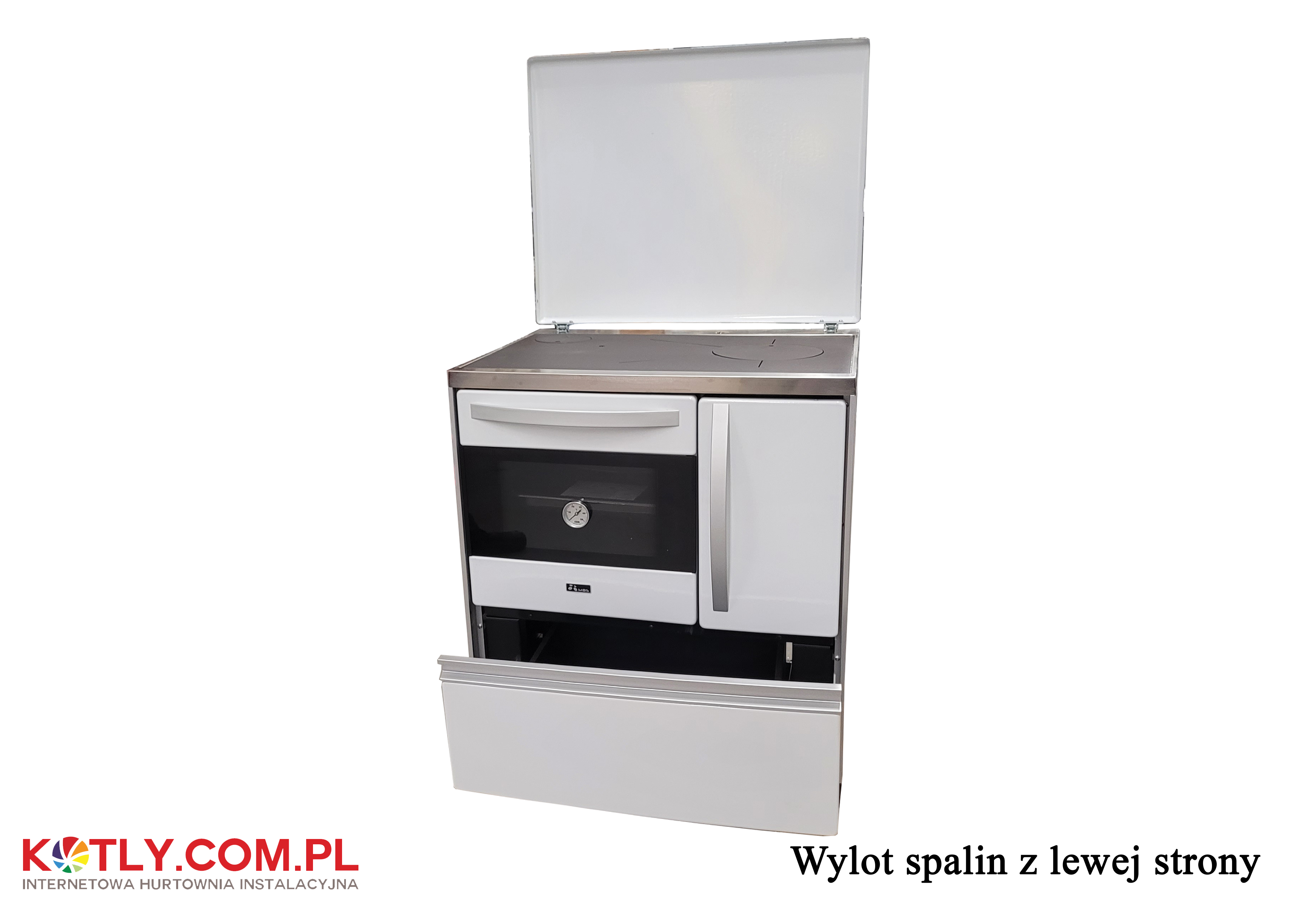

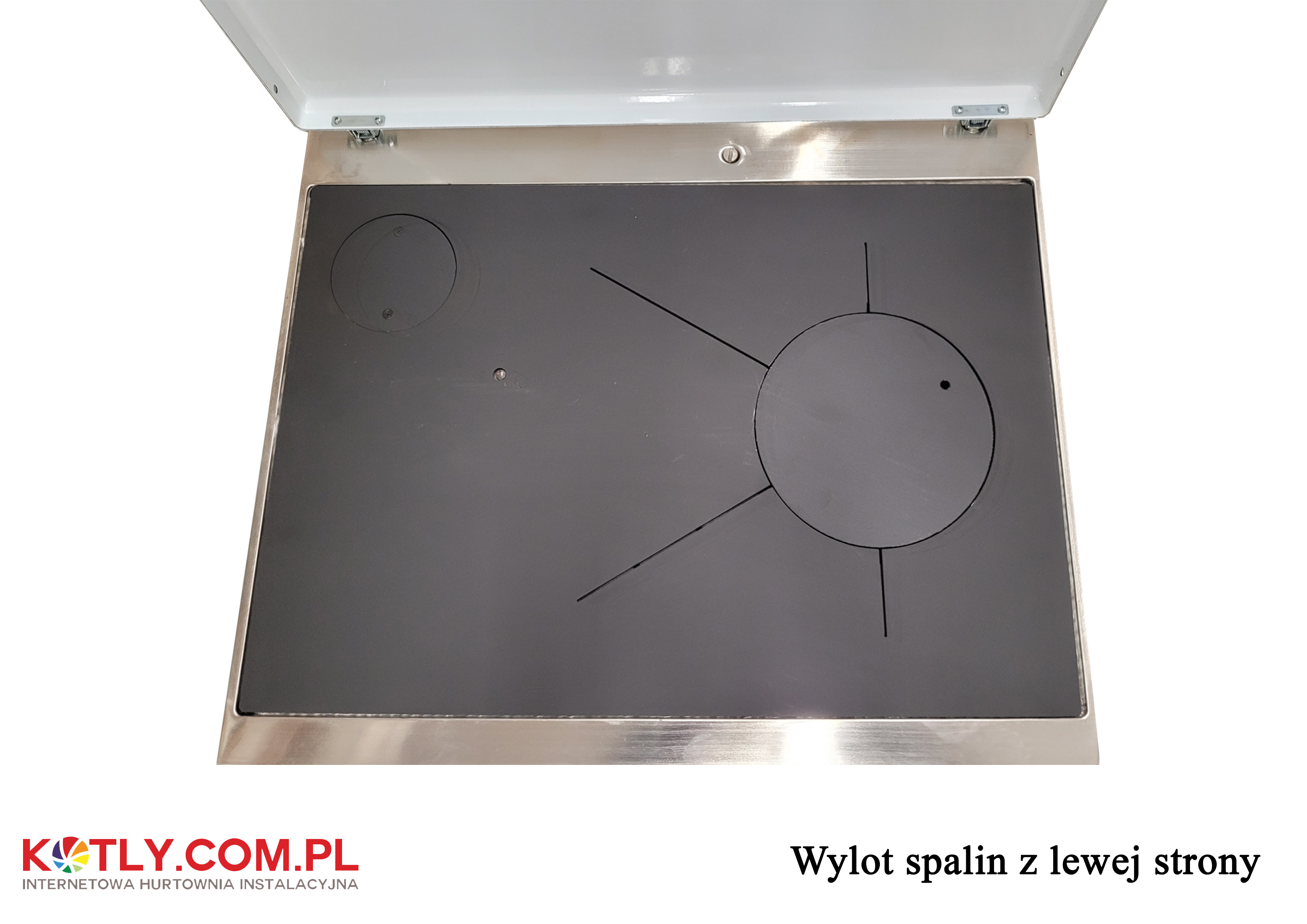

- convenient cooking plate equipped with a damper for easy temperature control during cooking.

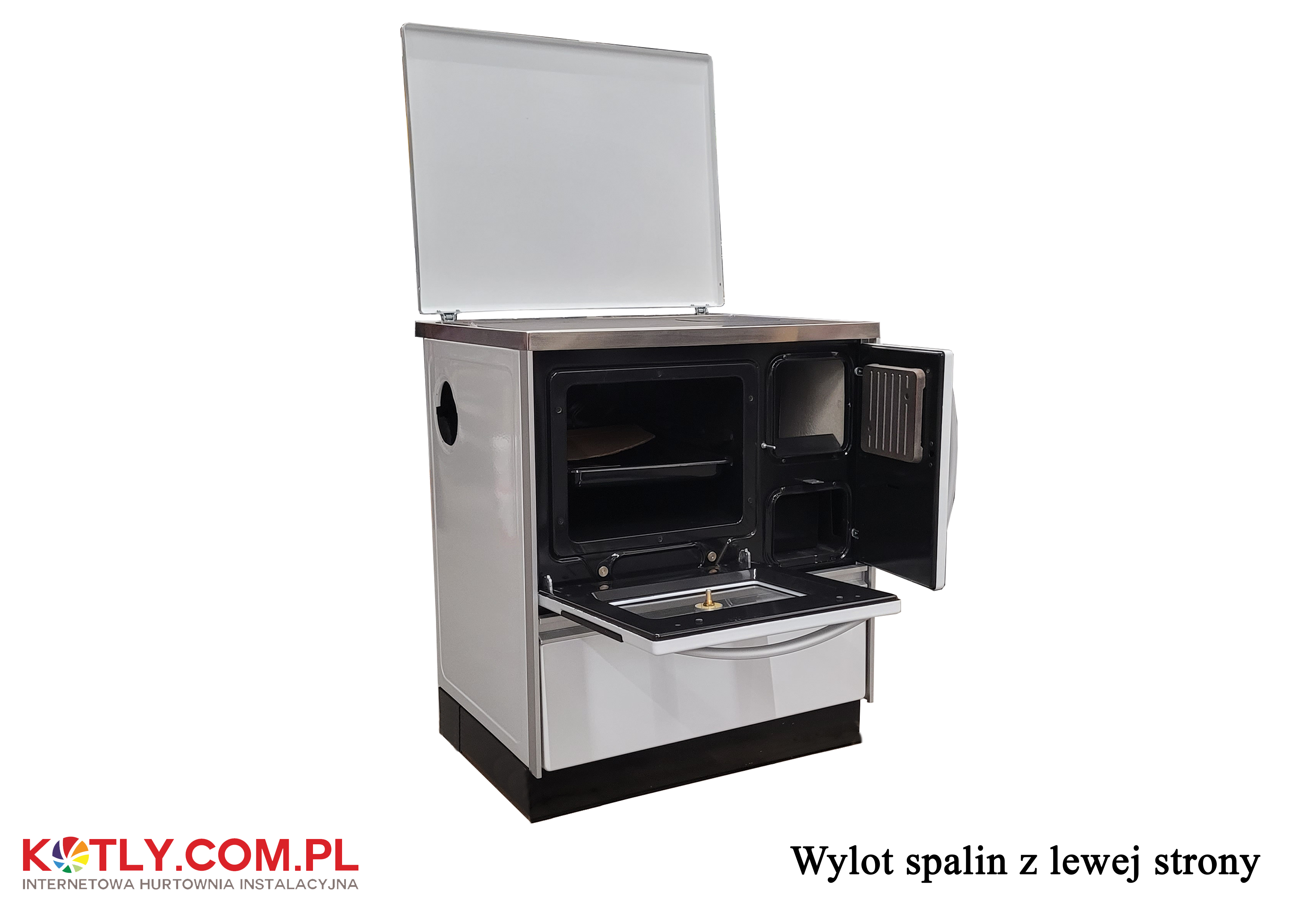

- oven allows for baking dishes.
- damper located at the front of the kitchen serves to regulate the flow of smoke
Check which side the flue gas outlet to the chimney should be located:Standing in front of the stove, you should choose which side the flue gas outlet to the chimney should be on.
Right-hand kitchen: the flue gas outlet will be at the back on the right side and on the right side wall, while the firebox will be on the left side
Left-hand kitchen: the flue gas outlet will be at the back on the left side and on the left side wall, while the firebox will be on the right side
One of the kitchen stove outlets should be sealed with a masking plate.
Recommended fuel:
- Wood
Power transferred to water: 6 kW (wood)
Power transferred to room: 5 kW (wood)
Water capacity: 4 l
Stove efficiency: 77% (wood)
Firebox dimensions: 280x170x400 mm (height x width x depth)
Oven dimensions: 270x350x470 mm (height x width x depth)
Height to the base of the flue collar:
Side flue gas outlet: 625mm
Rear flue gas outlet: 400 mm
