Electric heated air curtain AERIS 150E-1P

Kurtyna powietrzna elektryczna AERIS 200E-1P

discount

Availability: temporarily unavailable

Delivery: The price does not include any possible payment costs check the delivery methods

Price: $872.86

Regular price: ~~$1,229.71~~

872.86

The lowest price during 30 days prior to the reduction: $872.86

quantity pcs

product unavailable

add to wish list

Rating:

Vendor:

Description

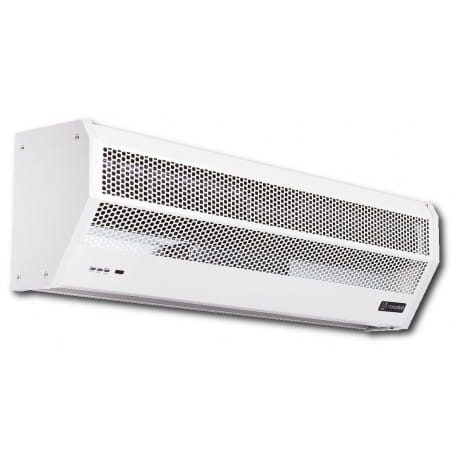

The air curtain AERIS 200E-1P is an ecological, single-phase device that protects against dust, insects, heat and cold. In winter it does not release warm air from inside, and in summer it does not let warm air in from outside. It provides fresh air.

It is mainly used at entrances to facilities such as: offices, hotels, shops, warehouses, etc. It has a 3-speed fan speed adjustment low/medium/high. Possibility of control via wireless remote control included in the set.

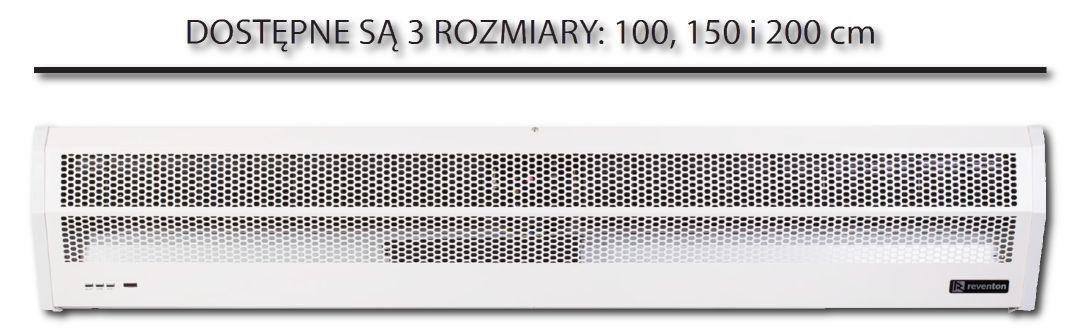

The curtain has a durable powder-coated metal casing. Available in 3 sizes: 100, 150, 200 cm. It has a door sensor and mounting panel included in the set. It is intended for internal installation in a horizontal suspended position above the door. The minimum installation height is 2.3m from the floor. In the event that the door opening is wider than the curtain, two or more devices can be installed next to each other, keeping a distance of 10-40 mm between the devices.

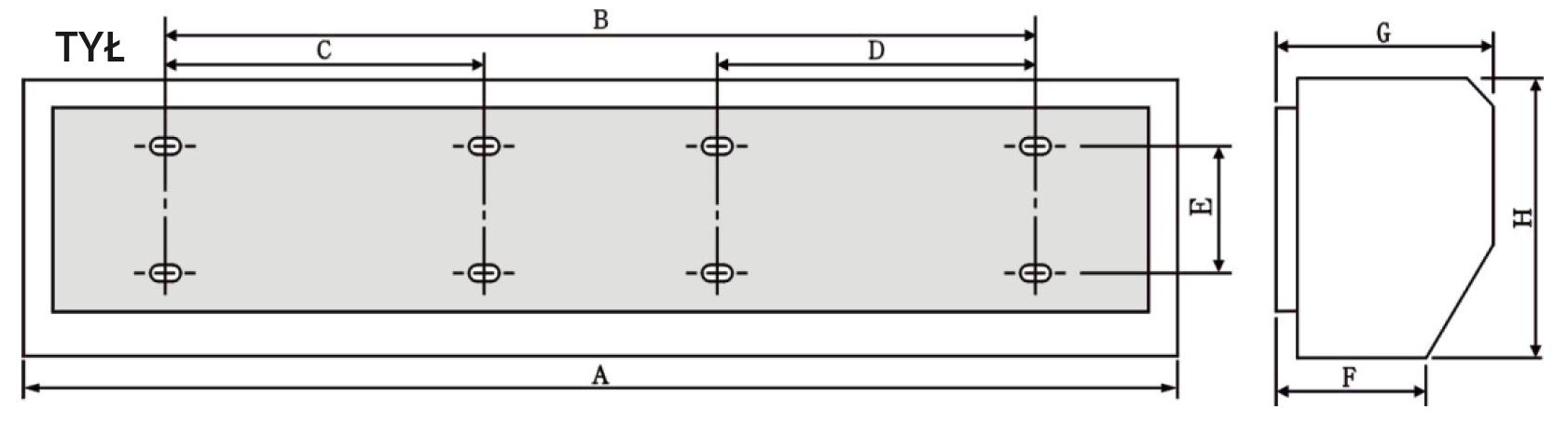

Dimensions

MODEL	A	B	E	F	G	H
AERIS 100E-1P	1000	440	90	105	195	265
AERIS 150E-1P	1500	840
AERIS 200E-1P	2000	840

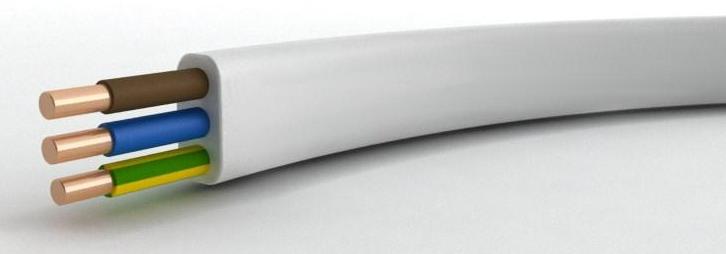

Minimum cable diameters

Power	SINGLE PHASE (230~, MAIN CABLE: L,N)
Heating power [kW]	3	4	5	6	8	10	14
Main cable [mm²]	1,5	2,5	2,5	4,0	6,0	10	10
Grounding [m²]	0,75	1,0	1,0	1,5	2,5	2,5	4,0

Technical data

Technical data	Unit	AERIS 100E-1P	AERIS 150E-1P	AERIS 200E-1P
PRODUCT CODE		AC100E-1P	AC150E-1P	AC200E-1P
DIMENSIONS	mm	1000 x 195 x 265	1500 x 195 x 265	2000 x 195 x 265
VOLTAGE	V/Hz	230~50	230~50	230~50
MAXIMUM MOTOR POWER	W	180	230	350
HEATER POWER	kW 1st speed kW 2nd speed kW 3rd speed	2 4 6	3,3 6,7 9,4	4,6 9,4 14
MAXIMUM AIR SPEED	m/s	8,5	8,5	8,5
NOISE LEVEL	dB HI dB LO	57 55	59 557	61 59
MAXIMUM AIR FLOW	m³/H	1200	1900	2800
NET WEIGHT	kg	15,5	20,5	26

Technical data

Warranty	2 lata
Depth	195 mm
Width	2 000 mm
Height	265 mm
