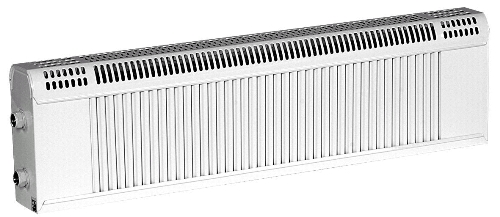

Bottom middle fed radiator REGULUS RDC5/100 495x1000mm

REGULLUS is a wall-mounted radiator with a characteristic oval upper casing. These are lightweight radiators, stainless steel and resistant to high pressure and large pressure fluctuations in the installation. They can work with boilers: electric, gas and oil.

Warranty: 25 years on tightness

The REGULLUS radiator is constructed from two systems: a water system and a heat dissipation system:

1. Water system – built from evenly distributed horizontal copper heating pipes inside the radiator, connected at the ends by vertical copper collecting manifolds. The connection of the heating pipes with the manifolds is made by brazing (hard solder).
2. Heat dissipation system – built from aluminum sheet fins mounted vertically on the heating pipes of the water system. Appropriately bent front and rear edges of the fins fit closely together, forming the front and rear walls of the radiator. All casing elements are made of aluminum.

The connection of copper with aluminum is a dry connection, therefore no electrochemical phenomenon occurs in it.

Detailed features:

• Specific construction – water system made of copper, heat dissipation system made of aluminum,
• High thermal conductivity coefficient – copper and aluminum,
• Mixed heat emission method: radiation + convection,
• Corrugated, very large heat exchange surface, this is an important feature when heating is based on low temperature of heating agent – condensing boilers, heat pumps,
• High efficiency at low supply temperatures – copper and aluminum have a high heat conduction coefficient (several times higher than steel and cast iron) – heat is emitted even with a small temperature difference (radiator and surroundings),
• Low self-weight and small water capacity resulting in high heating dynamics, radiators quickly reach full rated power for a given supply temperature – low thermal inertia,
• Low thermal inertia enables precise, energy-efficient and easily controllable heating, this is efficient operation in modern, controlled heating systems,
• High resistance to variable and high pressure,
