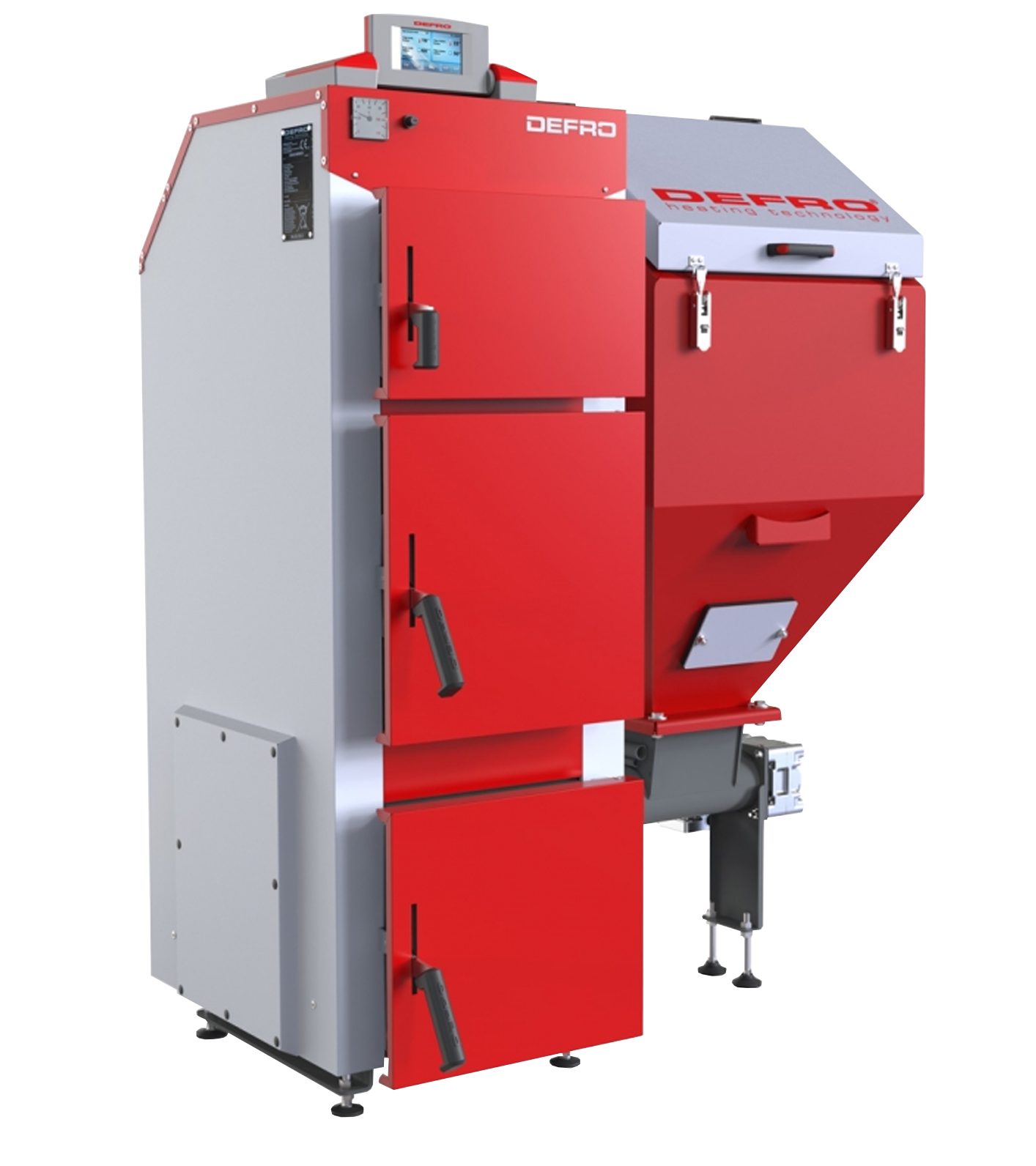

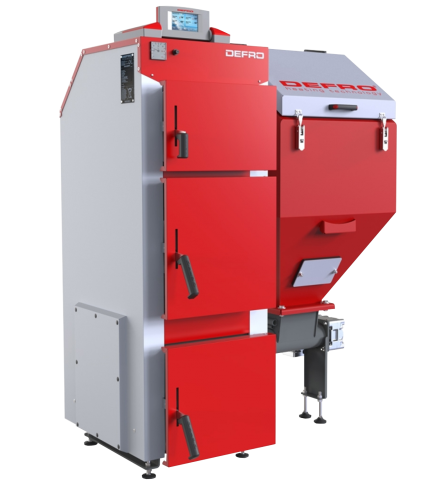

Automatic boiler Defro Komfort Eko LUX 15 kW with feeder on left side

The boiler KOMFORT EKO LUX is a boiler from the Komfort Eko series, designed for installation in an open heating system, it can be installed in a closed heating system, with a working pressure not exceeding 2.5 bar provided that thermal protection is applied, e.g. cooling valve DBV-2. Installation protection should meet the requirements of standards PN-EN-12828 and PN-EN 303-5.

The boiler KOMFORT EKO LUX has been equipped with an advanced K1Pv4 controller with a color touch panel (additionally supports heating system installation components). It is possible to purchase a GSM or INTERNET module, thanks to which we have supervision over the boiler outside the home.

The furnace also has an innovative solution, which is the ABM system, an energy-saving motor-gearbox (power consumption 30W) with high efficiency and self-reversal in case of fuel feeder blockage.

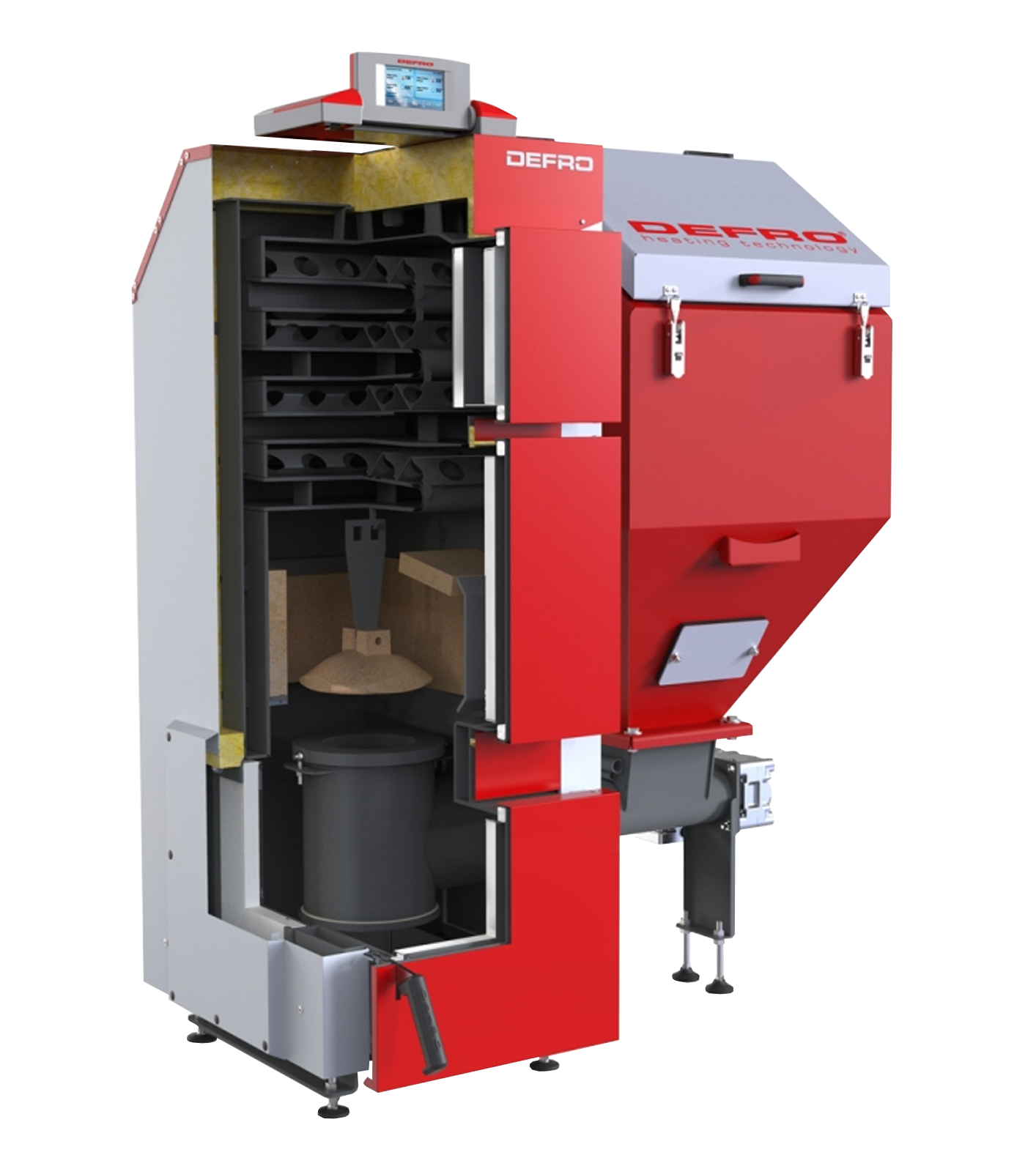

The combustion chamber is equipped with automatic retort burner. In the flue gas paths economizers (flue gas swirlers) are placed, designed to increase the boiler's efficiency and reduce the level of flue gas emissions. Fuel for the combustion process is transported automatically from the fuel tank located nearby using a screw feeder.

Flue gases are discharged to the chimney through the flue located in the rear or top wall of the boiler (CG version). For loading purposes and periodic cleaning and maintenance, the boiler is equipped with sealed and insulated burner-ash pan doors. In addition, cleaning doors are located on the front of the boiler - depending on the boiler's power, single or double.

The fuel tank is equipped with a filling hatch with a sealed closing mechanism. It has a flap opening sensor, which protects against leaving the fuel tank cover open. To reduce heat loss, the external surface of the boiler is insulated from the environment using external casing made of steel sheets, under which thermal insulation made of asbestos-free mineral wool is placed.

Standard equipment:

• electronic regulator K1Pv4,
• ADAPTIVE CONTROL control,
• PID function,
• NZ version for closed system,
• blow fan (installation on your own),
• boiler leveling foot (installation on your own),
• fuel supply system with burner,
• fuel tank,
• analog thermometer,
• ash drawer,
• flue gas swirlers,
• ceramic deflector,
• ceramic linings of the combustion chamber.

Additional boiler equipment (for an additional fee):

• FIREFIGHTER I extinguishing system,
• FIREFIGHTER II extinguishing system,
• SPK LUX room regulator,
• Additional mixing valve controller,
• GSM module,
• WIFI internet module,
• DBV-2 cooling valve,
• wireless SPK Lux regulator,
• wireless RS communication kit.

Functions implemented by the K1Pv4 controller:

• innovative ADAPTIVE CONTROL control using a turbine flow meter ensuring optimal selection of fan and feeder operating parameters
• history of the last twenty alarm states of the boiler
• ability to export temperature history to external USB memory
• possibility of cooperation with the exhaust fan module
• fan and screw feeder control
• control of the mixing valve actuator as standard
• weekly control
• control of heating system and hot water pump
• control of two additional pumps
• possibility of connecting a room regulator with RS communication or traditional one, e.g. SPK LUX
• possibility of connecting the DEFRO GSM module
• possibility of connecting the new version of the DEFRO Internet module allowing remote change of boiler operating parameters (access to user and service menus) via www.emodul.pl
• possibility of controlling two additional valves using DEFRO MZ modules
• handling of motor-gearbox with reverse operation (does not apply to PZ version)
• large, color graphic display
• touch panel
• adjustable display screen tilt in the range from 45° to 105°
• temperature sensor for heating system, hot water, valve, return, additional, flue gas and external temperature
• temperature protection (thermal)
• screw feeder temperature sensor (protection)

The boiler's heat exchanger was made from certified boiler steel with a thickness of 6 mm.

Energy-saving motor-gearbox with high efficiency and self-reversal in case of fuel feeder blockage.

Combustion chamber with highly efficient retort burner.

Fuel feeder screw made entirely from one element.

Pressure equalization system in the fuel tank.

The manufacturer provides a 5-year warranty on the heat exchanger tightness and a 2-year proper operation of the boiler and other components.

Vertical or horizontal flue configuration after installing a swivel elbow (swivel elbow is not part of the boiler equipment);

Boiler adapted as standard for installation in a closed system provided that installation is in accordance with the boiler's DTR.

Ceramic catalysts stabilizing the combustion process.

Change the direction of opening doors (does not apply to internal glow doors).

Fuel tank cover opening sensor.

ADAPTIVE CONTROL control- boiler operation regulation based on air flow through the heat exchanger.

K1P v4 controller with a color touch panel supporting 4 pumps (heating system, hot water, circulation, floor heating). Mixing valve control. Possibility of control via GSM or INTERNET- paid option, adjustable control panel angle.

High thermal efficiency reaching 90% thanks to increased heat recovery from flue gases.





Basic structural elements of DEFRO Komfort Eko LUX boiler



1. steel body with thermal insulation;
2. cleaning doors;
3. burner doors;
4. ash pan doors;
5. supply port;
6. return port;
7. drain port;
8. flue;
9. flue cleaning access (only if flue outlet is in the rear wall);
10. electronic regulator;
11. analog thermometer;
12. fan;
13. fuel feeder;
14. motor-gearbox;
15. fuel tank;
16. handle for carrying the fuel tank;
17. fuel tank inspection hole;
18. fuel feeder inspection hole;
19. mounting sleeve for fuel feeder temperature sensor for FIREFIGHTER I system¹⁾;
20. mounting port for BVTS valve of FIREFIGHTER I system¹⁾;
21. mounting port for BVTS valve of FIREFIGHTER II system¹⁾;
22. terminal strip for controller wires;
23. cover for sensor mounting sleeves;
24. wire passage;
25. fuel tank air supply connection;
26. mounting sleeve for flue gas sensor;
27. STB temperature limiter;
28. boiler leveling feet;
29. main switch;
30. mounting sleeve for return water temperature sensor.

¹⁾ FIREFIGHTER I and FIREFIGHTER II systems are not part of the boiler equipment, optional equipment for an additional fee.



Boiler Name		Komfort Eko LUX
Specification/boiler type		Unit	12	15	20	25	30	40
Power range		kW	3.6 - 12	4.5 - 15	6.0 - 20	7.5 - 25	9.0 - 30	12.0 - 40 Technical data Boiler class (303-5:2012) 5 Power output 15 kW Exhaust gas pipe diameter 159 mm Weight 408 kg Efficiency 90.7 % Ecodesign + Outlet and inlet size 1 1/2 G Warranty 60 mies. Min. chimney height 6 m Required chimney draught 24 Pa Silo volume 132 dm³ Max working pressure 1.5 bar thickness of steel 6 mm Clean Air Program + Shipping costs The price does not include any possible payment costs Shipping country: Related products Two-way thermal release valve Regulus DBV2 - bifunctional Two-way thermal release valve Regulus DBV2 - bifunctional Price: 2 236,36 Kč Add to cart Room regulator DEFRO SPK LUX - by wire Room regulator DEFRO SPK LUX - by wire Price: 6 303,03 Kč Add to cart Room regulator DEFRO SPK LUX - Wireless RS communication Room regulator DEFRO SPK LUX - Wireless RS communication Price: 8 606,06 Kč Add to cart Moduł internetowy DEFRO Moduł internetowy DEFRO Price: 6 121,21 Kč Add to cart Product reviews (0) All reviews (positive and negative) are displayed. We don't verify that they come from customers who have purchased the product. Contact: +48 32 415 31 65 lub +48 695 11 88 05 Email: kotly@kotly.com.pl PROSAT Fojcik Sp. J. ul. Rudzka 107, 47-400 Racibórz kotly@kotly.com.pl +48 32 419 01 20 +48 32 415 31 65 Copyright © 2025  Kotly.com.pl All rights reserved. up Shop is in view mode View full version of the site Sklep internetowy Shoper Premium
